ANPING FUHUA WIRE MESH MAKING CO.,LTD
| Tipo di pagamento: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Quantità di ordine minimo: | 1 Piece/Pieces |
| Trasporti: | Ocean,Land,Air |
| Porta: | TIANJIN PORT |
Bearing Bar Pitch: 12.5, 15, 20, 23.85, 25, 30, 30
Twisted Cross Bar Pitch: 38.1, 50, 60, 76, 80, 100, 101.6, 120mm,
Trattamento della superficie: Black, Self Colour, Hot DIP Galvanized, Painted
Color: Silver,Black
Transport Package: by Pallet or According to The Buyer′s Requirement
Trademark: fuhua or the buyer′s mark
Origin: Anping, China
Codice SA: 7308900000
Capacità di produzione: 1000 Rolls/Day
Sertifikasi: CCC, ISO
Aplikasi: Steel Structure Walkway, Foot Pedal, Drain Cover
Shape: Flat Shape
Manufacturing Method: Machine Welding
Material: Carbon Steel
Bearing Bar: 25X3, 25X4, 25X4.5, 25X5, 30X3, 30X4, 30X4.5, 30X5
| Unità vendibili | : | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

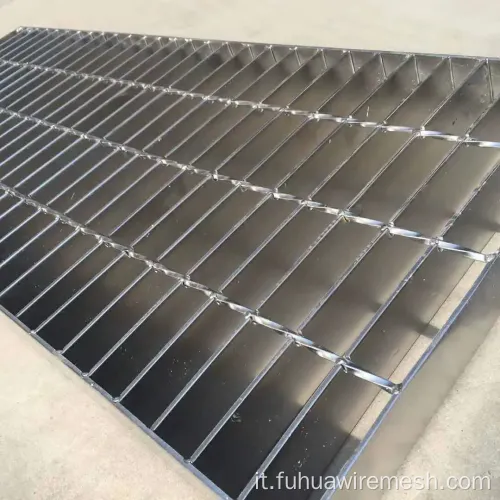

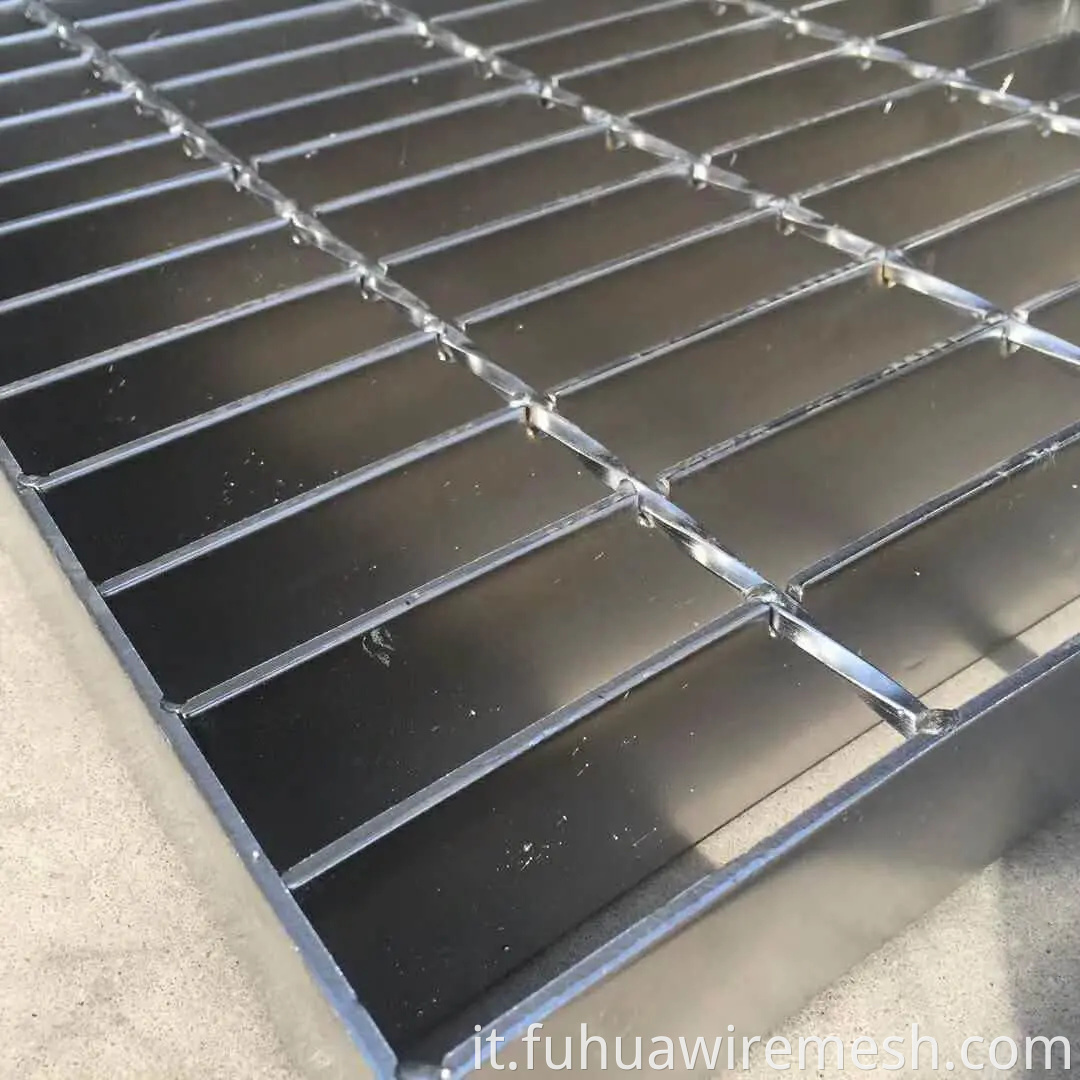

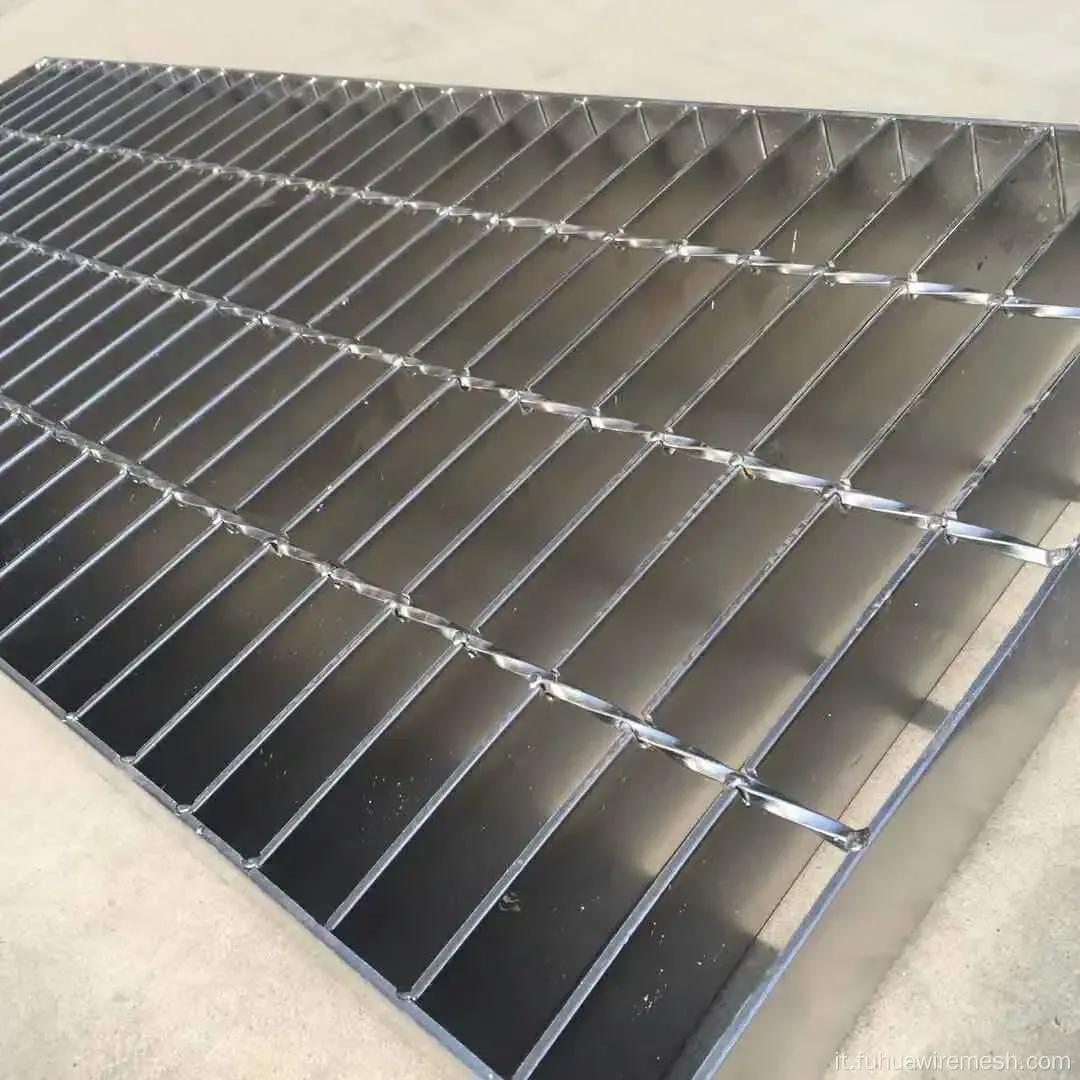

Grattugiato in acciaio (griglia in acciaio semplice a griglia in acciaio piatto e griglia in acciaio / a forma di dente in acciaio)
1) barra del cuscinetto (barra di carico) (mm): da 20 x 3 a 100 x 9; la specifica di "sezione i" è 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, ecc.
2) Pitch a barre dei cuscinetti (dal centro al centro): da 12,5 a 100 mm ecc.
3) Pitch a barra trasversale (da centro a centro): da 18,5 a 101,6 mm ecc.
4) Materiale di griglia in acciaio: grattugia in acciaio o in acciaio inossidabile Q235.
5) Trattamento della superficie della griglia in acciaio: non trattato, dipinto o zincatura calda
6) Standard di qualità:
Standard in acciaio: China YB/T4001-1998
America ANSI/NAAMM (MBG531-88)
Gran Bretagna BS4592-1987
Australia AS1657-1992
Acciaio Standard: China GB700-88 / ASTM (A36) / BS4306 (43A)
Standard galvanizzante a caldo: China GB / T13912-92 / ASTM (A123) / BS729
7) Applicazione della griglia in acciaio: pavimento; passerella; mezzanini/decking; battistrada delle scale; scherma; cestino del cestino; rampa; dock/magazzino; tutti i tipi di copertura della trincea; vetrine e macchinari ; Soffitto sospeso; copertura della fossa di drenaggio, ecc
Specifiche
(1) Dimensione del pannello massimo disponibile per 1000x5800mm
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
(2) Trattamento e applicazione di superficie: finitura del mulino, calvo zincato, dipinto
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
