| Tipo di pagamento: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Quantità di ordine minimo: | 1 Roll |
| Trasporti: | Ocean,Land,Air,Express |
| Porta: | TIANJIN ,QINGDAO |
marchio: Ruili
Luogo D'origine: Cina
Materiale: Fil di ferro, Filo di acciaio
Trattamento Della Superficie: Zincato, Rivestito in pvc
Specie: Bobina di filo spinato, Rete di filo spinato, Filo di filo spinato
Tipo Di Lama: Rasoio singolo, Cross Razor
Modello n.: BTO-22, BTO-30
Barbed Distance: 4"
Barb Length: 22mm
Coil Outside Diameter: 450mm
Color: Galvanized
Width: 2m Max
Height: 2m
Transport Package: Wooden Case, Gunny Bag
Specification: BTO18 BTO22, BTO28, CBT65
Trademark: RUILI
Origin: Anping, Hebei
Codice SA: 73130000
Capacità di produzione: 100ton/Month
Material: Galvanized Iron Wire
Twist Method: Welded
Aplikasi: Protecting Mesh, Fence Mesh
Finish: Hot Dipped Galvanized
Razor Barbed Type: Cross Razor
Wire Gauge: 2.5
| Unità vendibili | : | Roll |
The file is encrypted. Please fill in the following information to continue accessing it
Materiali: galvanizzato a caldo, elettro zincato, acciaio inossidabile, filo di ferro, filo rivestito in PVC
Tipo: CBT (Concertina Bising nastro) e BTO (ostacolo del nastro spinato)

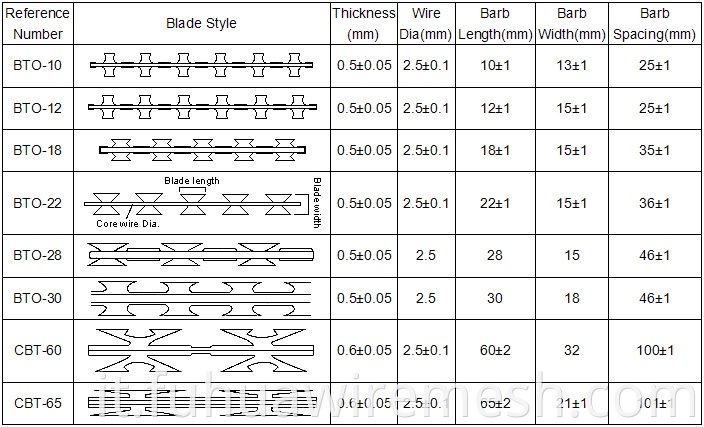

Tipo: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65 ecc.
450 mm, 500 mm, 700 mm, 600 mm, 980 mm, 1000 mm ecc. Come richiedono i clienti
[Matrial]
Filo core galvanizzato e lama
filo core zincato a caldo e lama
Filo e lama del nucleo in acciaio colorato
Filo core rivestito in PVC e lama
Filo core zincato a caldo+lama in acciaio inossidabile
Tipo di rasoio: tipo singolo, tipo cross (3 o 5clips per cerchio)

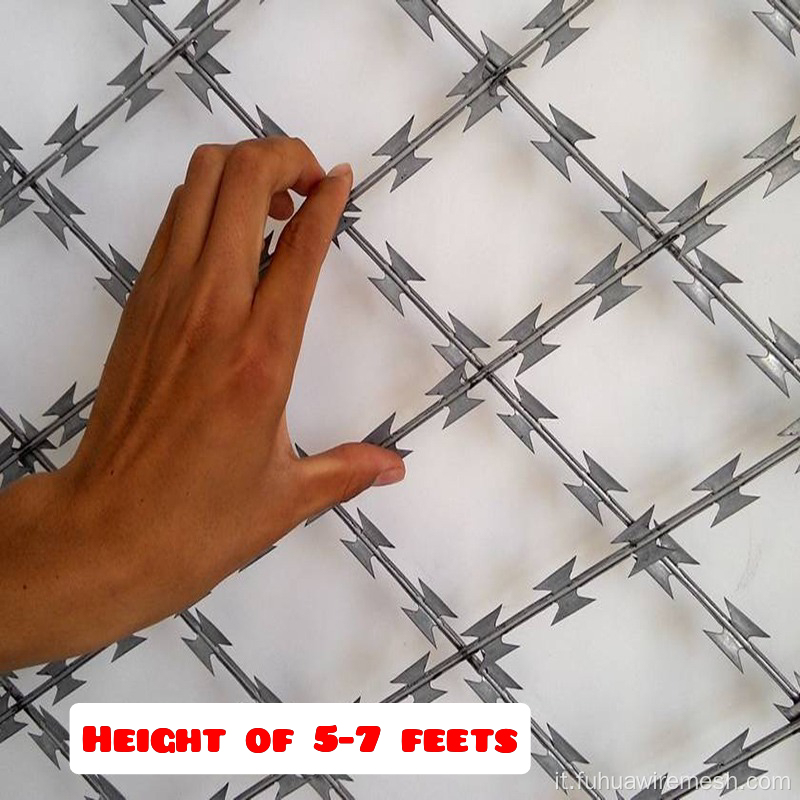

Recinto di filo spinato con rasoio
Cavo di rivestimento zinco galvanizzato a caldo:
| Outside diameter | NO. of loop | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8m | CBT-60,65 | Single coil |
| 500mm | 41 | 10m | CBT-60,65 | Single coil |
| 700mm | 41 | 10m | CBT-60,65 | Single coil |
| 960mm | 53 | 13m | CBT-60,65 | Single coil |
| 500mm | 102 | 16m | BTO-10,15,22,30 | Cross type |
| 600mm | 86 | 14m | BTO-10,15,22,30 | Cross type |
| 700mm | 72 | 12m | BTO-10,15,22,30 | Cross type |
| 800mm | 64 | 10m | BTO-10,15,22,30 | Cross type |
| 960mm | 52 | 9m | BTO-10,15,22,30 | Cross type |
| Note: The blade types and specifications can be customized according to the customers' actual equirements. BTO-10 and BTO-22 are normally used in production of cross type. | ||||
| High | Standard cover length | Weight |
| 500mm(20inch) | 15M(50ft) | 9.5kg(21lbs) |
| 700mm(28inch) | 15M(50ft) | 13kg(29lbs) |
| 900mm(36inch) | 15M(50ft) | 14.5kg(32lbs) |
| Hole Size | Hole Style | Width | Length | Blade style |
| 100mmX100mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22.30 CBT-60.65 |
| 100mmX150mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| 100mmX200mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| 150mmX300mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| Notes: Any sizes can be customized by customer's request. | ||||
Filo:
Grado A: filo 60-80G/M2 Blade: 60-80G/M2
Grado B: filo 80-120G/m2 Blade: 100-150 g/m2
Grado C: filo 160-200G/M2 Blade: 230-270G/M2
filo piatto
Dimensione mesh: 75*150.150*300
