ANPING FUHUA WIRE MESH MAKING CO.,LTD
| Tipo di pagamento: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Quantità di ordine minimo: | 1 Roll |
| Trasporti: | Ocean,Land,Air |
| Porta: | TIANJIN |
Model NO.: BTO-10
Barbed Distance: 3"
Barb Length: 22mm
Coil Outside Diameter: 450mm
Color: Galvanized
WIRE: Electric Wire or Hot-DIP Galvanized Wire
Transport Package: Carton
Specification: rolls
Trademark: RUILI
Origin: China
HS Code: 73130000
Production Capacity: 10000
Material: Galvanized Iron Wire
Twist Method: Clips

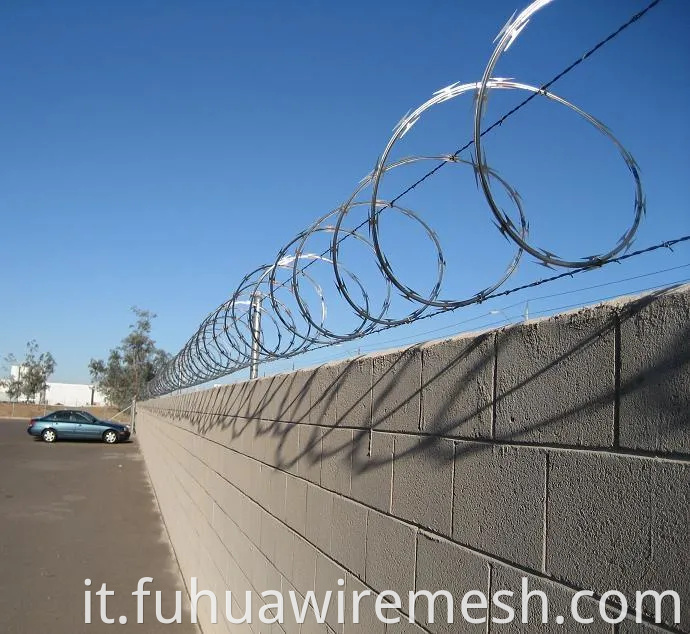

Application: Protecting Mesh, Fence Mesh
Finish: Hot Dipped Galvanized
Razor Barbed Type: Cross Razor
Wire Gauge: 12x12 BWG
| Unità vendibili | : | Roll |
| Blade Specification | Blade Forms | Blade Thickness | Core Wire Dia. | Blade Length | Blade Width | Blade Space |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 | |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 | |
| CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | |
| CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Ex. Dia. | No. of Turns | Standard Covering Length | Production Model | Remarks |
| 450mm | 33 | 8M | CBT-65 | Single coil |
| 500mm | 41 | 10M | CBT-65 | Single coil |
| 700mm | 41 | 10M | CBT-65 | Single coil |
| 960mm | 53 | 13M | CBT-65 | Single coil |
| 500mm | 102 | 16M | BTO-12.18.22 | Cross type |
| 600mm | 86 | 14M | BTO-12.18.22 | Cross type |
| 700mm | 72 | 12M | BTO-12.18.22 | Cross type |
| 800mm | 64 | 10M | BTO-12.18.22 | Cross type |
| 960mm | 52 | 9M | BTO-12.18.22 | Cross type |
